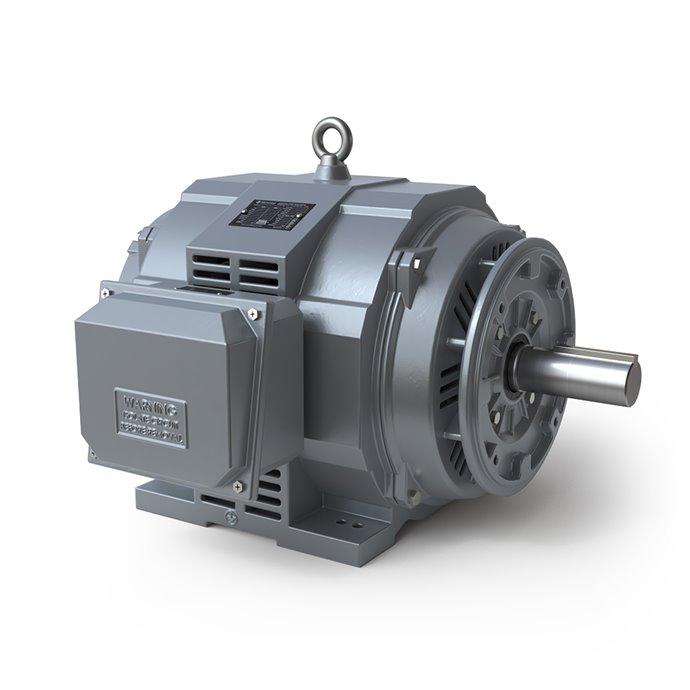

DPC1256E-TC
125HP, 1200RPM, 460V, 3PH, 445TC, Rigid/C-Flange, ODP- Catalog Number: DPC1256E-TC
Specifications
Motor type
NEMA Motors General Purpose Three Phase
HP
125
RPM
1200
Voltage
460
Phase
3
Frame
445TC
Mounting
Rigid/C-Flange
Enclosure
ODP
Material
Cast Iron
| Electrical Data | |
|---|---|
| Rated Motor Output Power | 125 HP |
| Rated Motor Speed | 1190 tr/min |
| Rated Motor Voltage (+/-10%) | 460 V |
| Rated Motor Current | 146.67 A |
| Phase | 3 |
| Poles | 8 |
| Locked Rotor Current @ High Voltage | 1261 |
| Current Fl @ 208V | - |
| Service factor | 1.15 |
| KVA code | J |
| Nominal efficiency | 95 |
| Rated power factor | 0.84 |
| Cables (Qty, Size) | 6 | 2 |
| Frequency | 60 Hz |
| Connection | D |
| Start capacitor | - |
| Run capacitor | - |
| VFD DUTY (S.F. 1.0) | RATIO |
| Variable Torque | 30:1 |
| Constant Torque | 15:1 |
| SITE CONDITIONS | |
| Ambient Temperature (℃) | 40ºC |
| Meters Above Sea Level (MASL) | 1000 |
| General Data | |||
|---|---|---|---|
| Frame Size | 445TC | ||
| Enclosure | ODP | ||
| Mounting | Rigid/C-Flange | ||
| Number of speeds | - | ||
| Approximate weight | 1682 lbs. | ||
| Casing Material / Fan Cover | Cast Iron | | | - |
| Shaft Material | 1045 | ||
| NEMA design | A | ||
| Degree of protection (IP) | 23 | ||
| Insulation class | F | | | B |
| Rotation | Réversible | ||
| Service | Continu/ S1 | ||
| Conduit Box Location | F1 | ||
| Feet Removable / Double Drilled | No | | | Yes |
| Paintwork | 7024 | | | Graphite Gray |
| Mechanical Data | |||
| Bearing DE Side | NU 319 | ||
| Bearing ODE Side | 6316 C3 | ||
| Grease Type | Mobil Polyrex EM | ||
| Compensation Ring (wavy washer) | NDE | ||
| Moment of Inertia (lb-ft2) | - | ||
| Sound Pressure @ 3 FT dBA | - | ||
Features
- Removable feet F1, F2, F0 field convertible on all Aluminum frames, F2 convertible on all Cast Iron frames
- 1.25 Service Factor through 326T frame, 1.15 Service Factor for larger frames with 60Hz operation / 1.0 Service Factor with 50Hz operation
- Usable at 208V 60Hz with 1.0 Service Factor 50HP and below
- 36 Month warranty
- Conduit Box is 90º rotatable
- Compact cast aluminum and Cast Iron construction
- Anti-microbial (tropicalization) on stator winding
- Regreasable bearings 254T frame and larger
- Mobil Polyrex EM polyurea grease
- Surface finish: Alkyd enamel RAL7024 - Graphite Gray
- Black oxide surface treatment for increased corrosion resistance
- Stainless steel nameplate
- Corrosion resistant hardware
- Ultra high strength, reusable lifting straps included with motors 254T frame and larger
Operating parameters
- Continuous (S1) duty
- Ambient temperatures up to 40ºC
- Installation up to 1000 MASL (3300 ft.)
Connection
- Up to and including 215T Frame:
- 9-Lead 230V parallel-wye / 460V series-wye connection
- 3-Lead 575V wye connection
- 254T Frame and larger:
- 12-Lead 230V parallel-delta / 460V delta connection
- 6-Lead 460V or 575V single voltage delta connection
Ingress protection
The standard degree of enclosure protection is IP23.
Insulation and inverter rating
- Class F Insulation (Impregnation resin, magnet wire and insulation materials are Class H)
- Designed to Class B temperature rise
- Vacuum Impregnated
- Inverter Rated 15:1 Constant Torque, 30:1 Variable Torque (1.0 S.F. on VFD Power)
- Exceeds NEMA MG 1 Part 31.4.4.2
